Universal Bolt (Locking Bolt), Perfect Connection Element for DCT Elements. It is Used when Elements of Different Material Thickness are Being Interconnected. The Large Balls Shift the Center of Pressure Towards the Outside, and Prevent a Displacement of the Material.

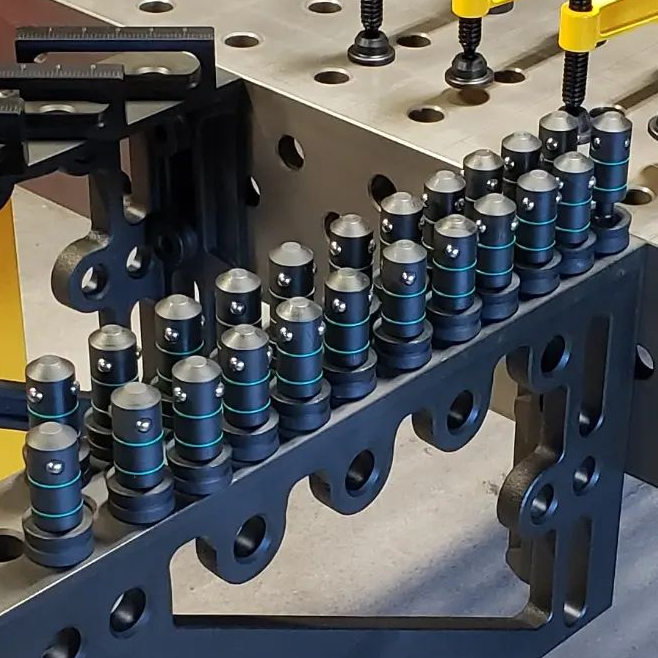

This universal bolt is designed for backward compatible use with older welding table fixture kits or custom fixtures that are slightly thicker or thinner than standard DCT parts. This short bolt is designed for connecting two components together or connecting one component to the table.

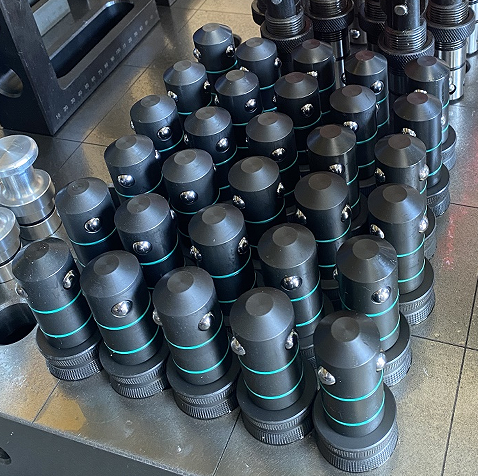

Universal Bolt
Product details
●Connecting element for all system components on tables, perforated plates etc. or for special fixtures
●Very fast connection with simultaneous large stroke
●Very high clamping force due to planetary gear effect and by avoiding a double thread
●Force-fit and form-fitting, O-ring for self-centring connection
●With clamping range
●High-quality hardened steel, maximum precision thanks to grinding
●O-rings prevent simultaneous rotation while tightening and clean the system bore at the same time
●Clamping balls, mechanically secured against falling out, to ensure even clamping
●Connecting element for all system components on tables, perforated plates etc. or for special fixtures
●Very fast connection with simultaneous large stroke
●Very high clamping force due to planetary gear effect and by avoiding a double thread
●Force-fit and form-fitting, O-ring for self-centring connection
●With clamping range
●High-quality hardened steel, maximum precision thanks to grinding
●O-rings prevent simultaneous rotation while tightening and clean the system bore at the same time
●Clamping balls, mechanically secured against falling out, to ensure even clamping
