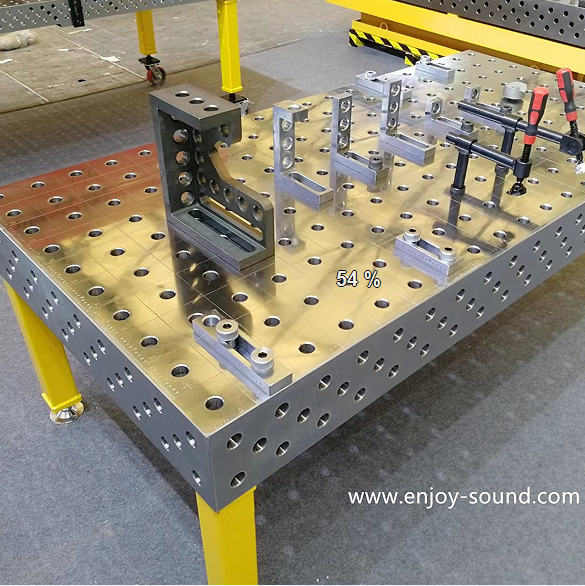

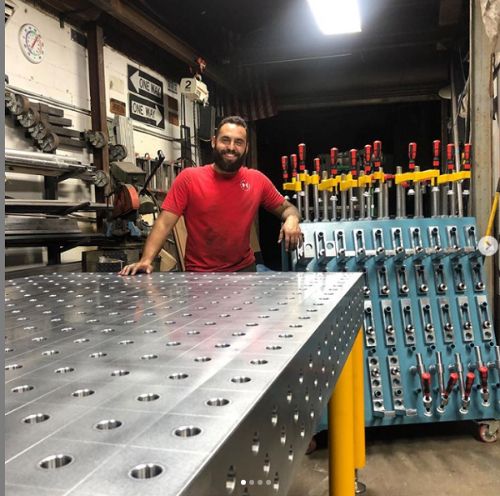

3D welding table

Made from Cast iron/Steel the 3D welding jig table from DCT is made to withstand the rigors of any shop. All of DCT's welding tables are made to exact tolerances and maintain flatness of +/- .0025". The 3D Welding Jig Table has many table size options and has a total of 5 mounting surfaces that use Industry standard 28mm holes that are spaced at 100mm to ensure the most options with the strongest holding power. For more information about our welding tables, contact a DCT representative.

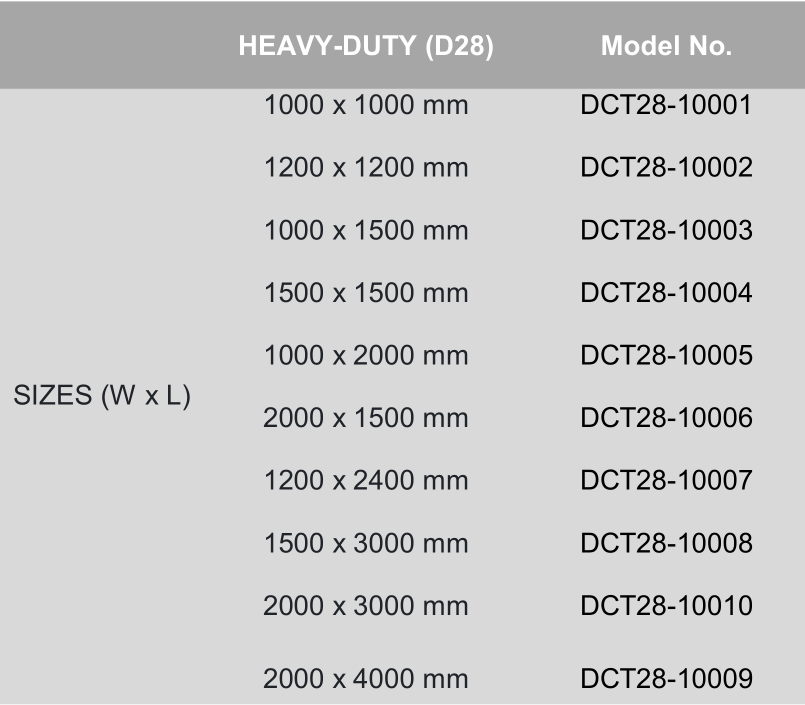

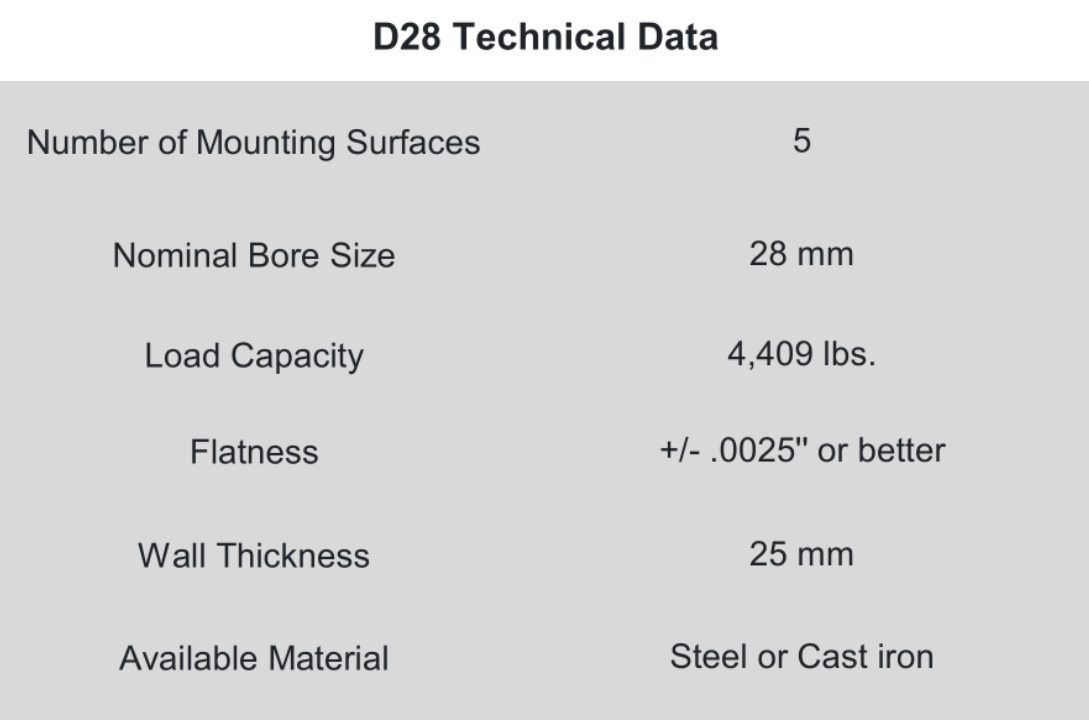

  • System 28 Welding Table Dimensions

    The System 28 Welding Table Series was created with Heavy Duty Applications in Mind.

    All System 28 Professional Extreme tables feature the latest upgrades in aesthetics, versatility, and durability.

    1. Metric Scaling on the surface.

    2. Construction reinforced with ribbing.

    3. Height of table side 200mm (7.87")

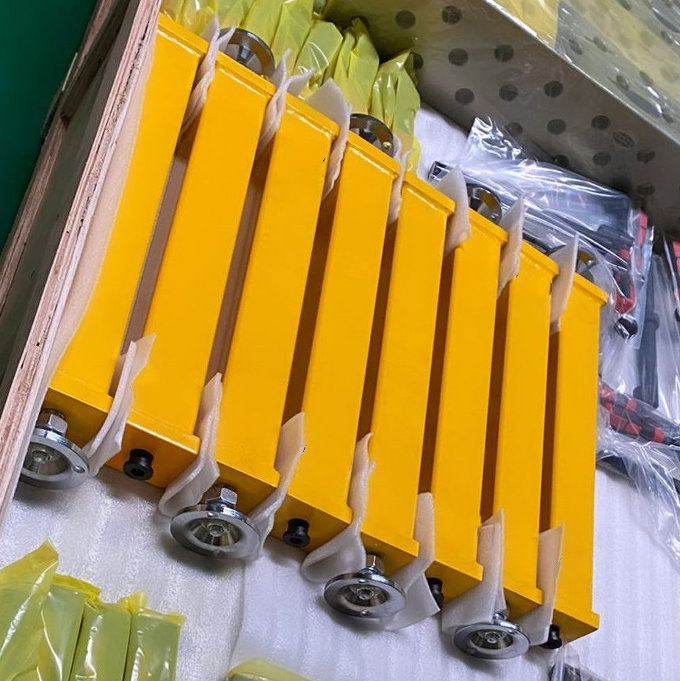

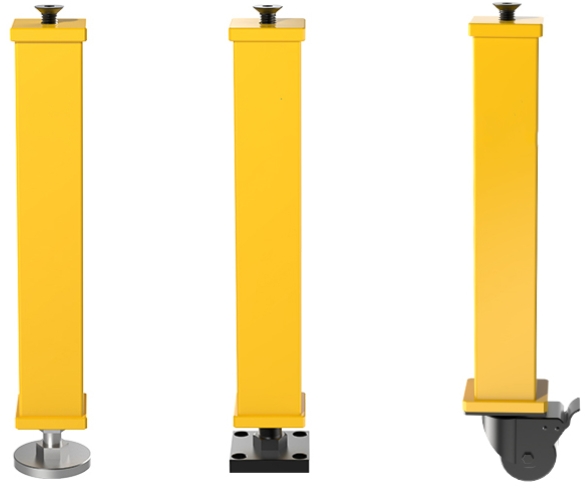

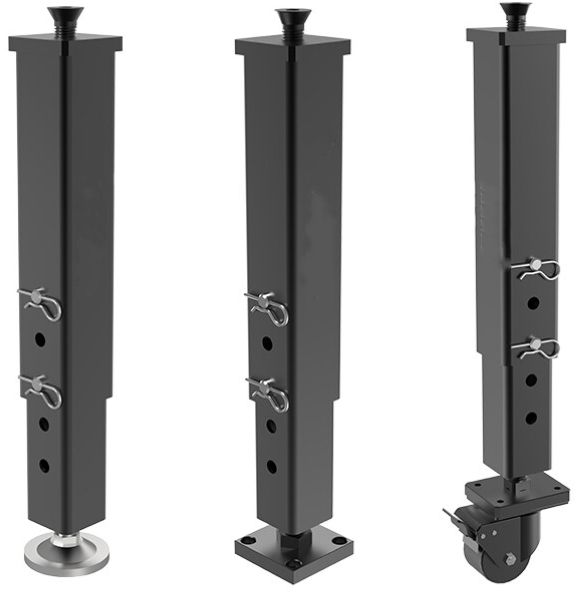

    Stationary leg and Caster leg


    Adjustable Height Caster Leg/  Adjustable Height Leg

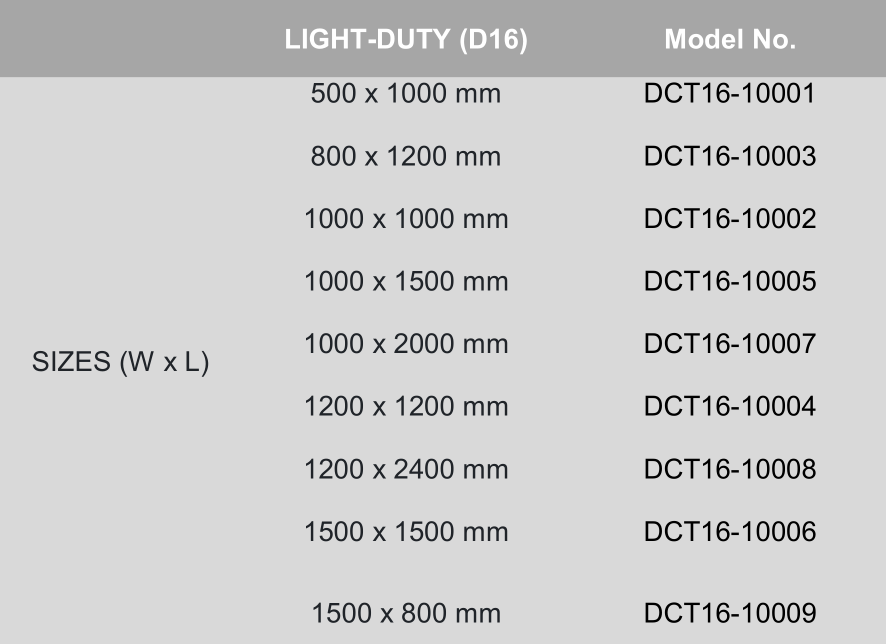

    System 16 Welding Tables

    DCT System 16mm Welding Tables were made for those that deal with Finer Detail Fixturing Applications, that do not need a table that would be too much for them, like the System 28, as the DCT System 28 tables were made for Heavy-Duty Fixturing Applications.

    The System 16mm DCT Welding Tables are truly built to last a lifetime and far beyond. The System 16mm DCT Engineered Tables are unbelievably rigid and have the flattest surface of any Welding Table in the market, with a 5-Sided Top which can be used with or without optional heavily constructed legs. The Nitride finish protects the welding tables against rust and weld spatter to make sure that the welders surface is kept extremely clean and accurate for fixturing.

    Welding Table Specs and Features:

    1. Boreholes on the Surface: 50x50mm Grid (1.96"x1.96").

    2. Metric Scaling on the surface.

    3. Construction reinforced with ribbing.





    We have two surface treatments:

    1. Chromeplating surface treatment: It provides increased surface, increased resistance to corrosion and rust.

    2. Nitrided treatment: The main benefit of our plasma nitride treatment is dramatically increased resistance against weld spatter and resistance against wear and deformation.

    Additional benefits of the nitride process include resistance to corrosion.
