This DCT stop and clamping square can be used as a solid stop or combined with other accessories to form more complex fixtures. The DCT 175mm L Stop and Clamping Square can be utilized as a multifunctional adjustable angle, by combining system bore holes and oblong slot. This component also functions well as a stop for large parts.

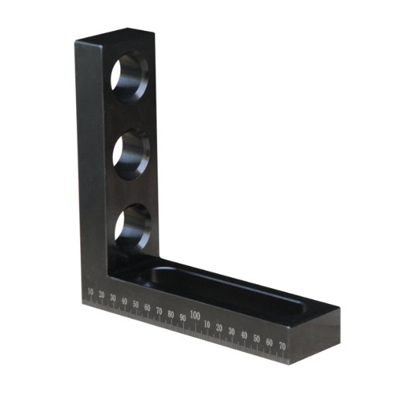

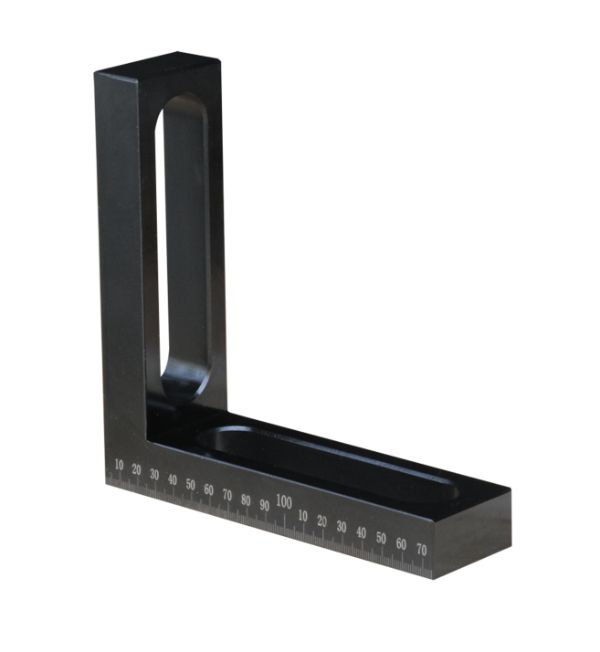

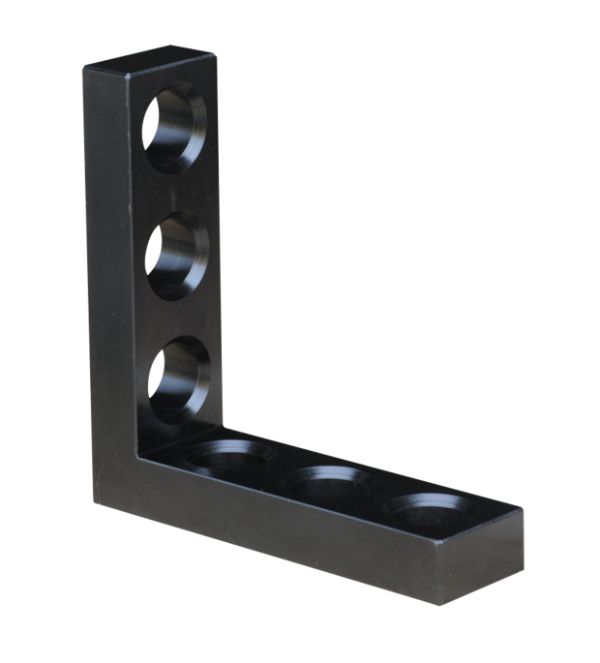

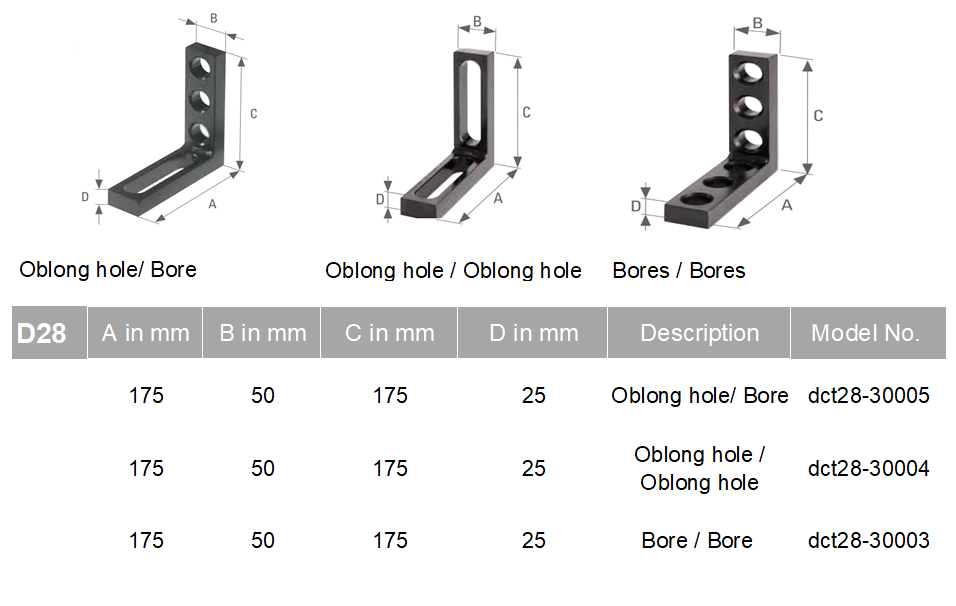

Stop and Clamping Square, 175mm x 175mm
Product details

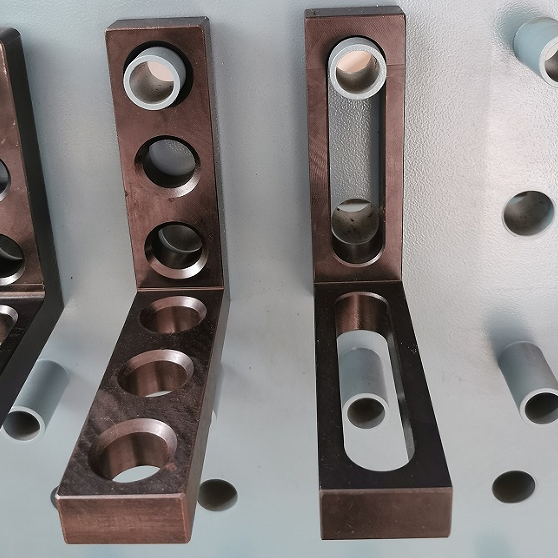

●Combination system bores / oblong hole for numerous clamping possibilities.
●Precision scaling on both sides.
●Two full angle surfaces, therefore usable from both sides.
●Dimension adjustment using grid lines on 3D worktable possible.
●Compatible with all clamping and locating angles so that the oblong hole can be used to form a height-adjustable support.
