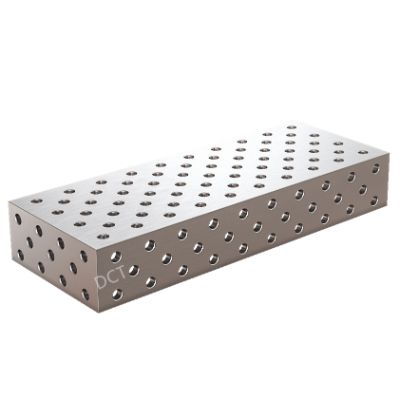

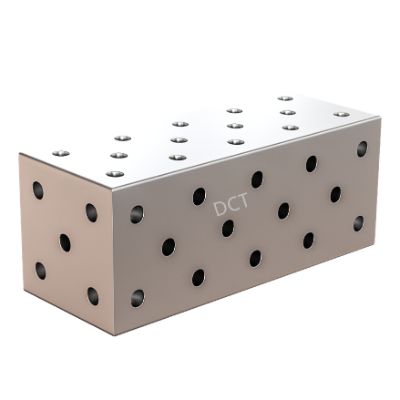

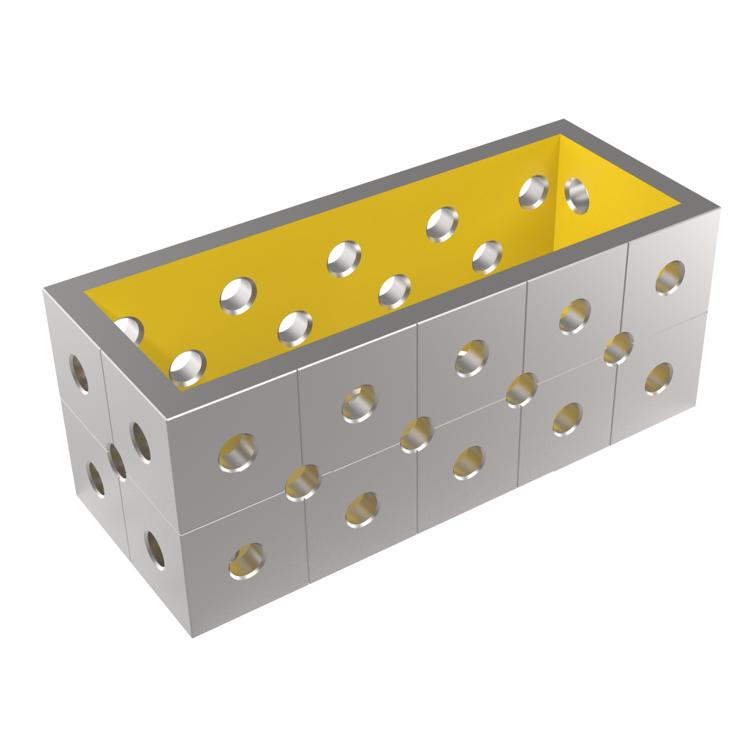

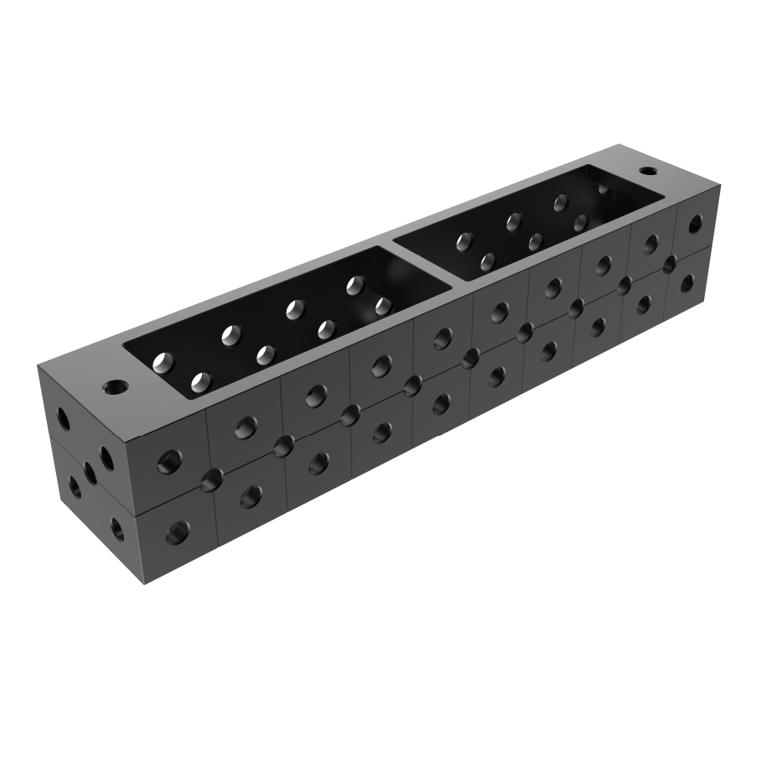

Square U-Shape Riser Block

Product details
●Optimum application on rail system
●for use as a table extension
●Application: 5-sided


  • The DCT Square U-Shape Riser Block is for working with superstructures and heavy work pieces. Riser Blocks are firmly screwed by using connector bolts. When used as a table extension exceeding 1,000mm, the Riser Block has to be supported by a table leg. Combined with the legs, Riser Blocks can be flexibly used on the foundation rails. A multitude of clamping- and connection options, using different Riser Blocks and Stops, are facilitated by the five-sided bore holes and the optional diagonal hole arrangement. The 100x100mm grid simplifies orientation.

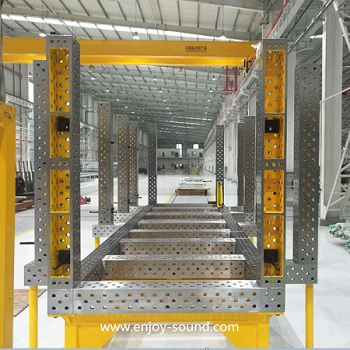

    The DCT Square U-Shape Riser Block ideally suited as a table extension for vertical setups, as well as a sturdy connection between two welding tables. The Square is firmly mounted to the table using Connecting Bolts. If the Square is used as a table extension exceeding 1,000mm, it has to be supported by a table leg. The diagonal hole arrangement enables many clamping- and combination options in connection with other squares and stops.
